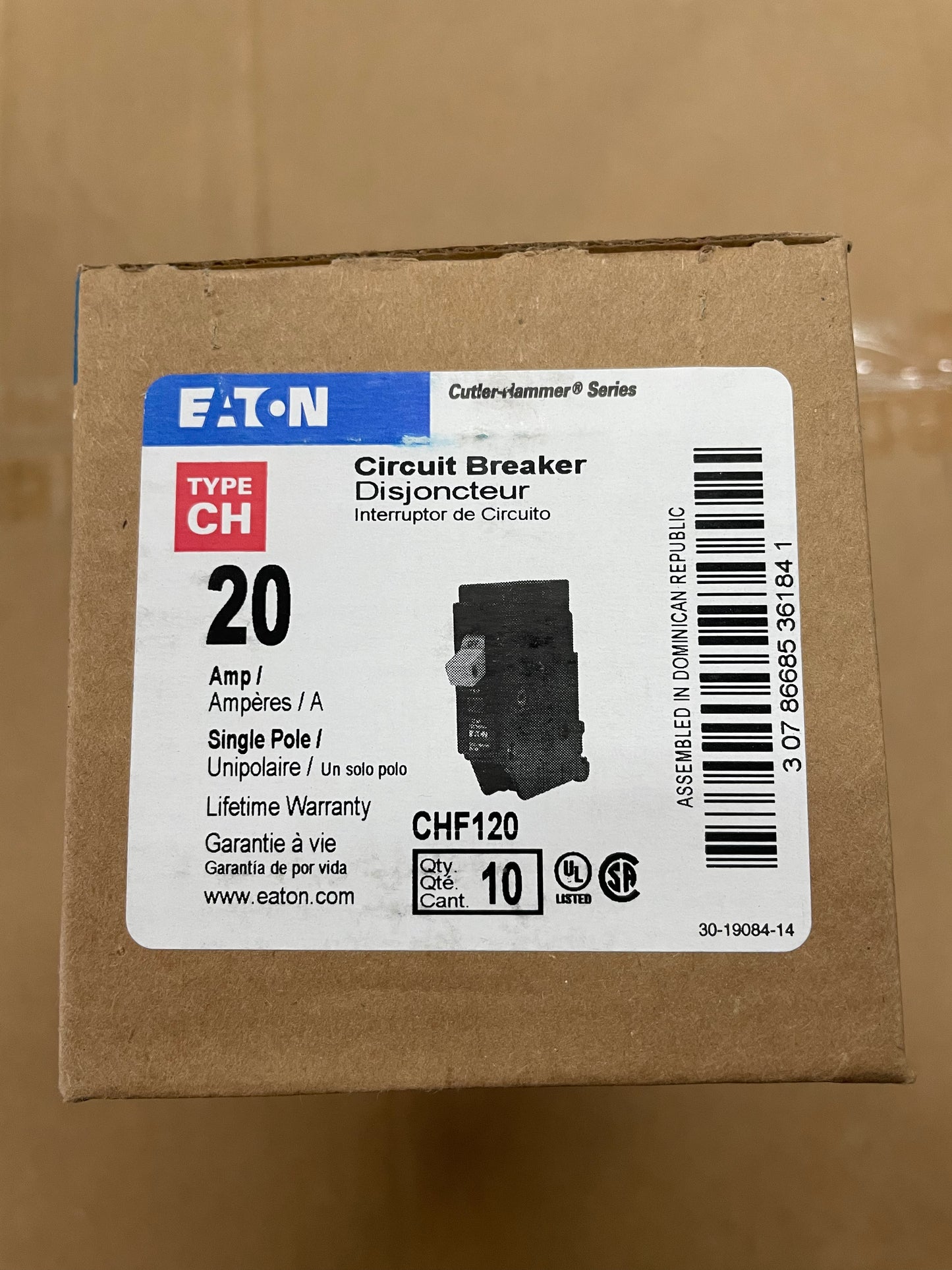

20A Eaton Type CH Breaker

Eaton CHF120

We Several Available New in the Box. Sold Individually

EATON Circuit Breaker: 20 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, Type CH Loadcenters

Amps20 AAC
Voltage Rating120/240V AC Circuit
Breaker Type Standard
Number of Poles 1
DC Voltage Rating Not Rated
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Plug In
Compatible Panelboard/Load Center Series CH
PhaseSingle Max. AIR Rating10kA at 120/240V AC
For Use WithType CH Loadcenters
Length 3 in
Width 0.75 in
Depth 3 inMin.
Wire Size(1) 8 AWG, (2) 10 AWG (Cu/Al)
Max. Wire Size14 AWG (Cu/Al)
StandardsUL 489,
